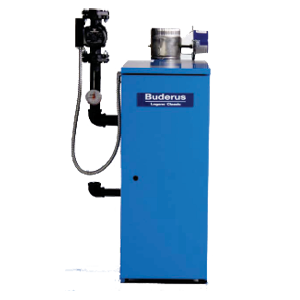

The GC124 heat exchanger construction consists of flexible GL-180M cast iron, designed to resist thermal shock for long life and a high silicone cast iron surface for excellent corrosion resistance. Standard equipment includes high precision castings with threaded steel nipples, Honeywell aquastat, tridicator gauge, 30 psi relief valve and a circulator with a 3 inch whip and a built in draft hood with integral draft diverter. All piping connections are in the rear for a finished appearance with its deluxe, heavy gauge blue enameled jacket.
| MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. |
|---|---|---|---|---|---|---|
| GC124-3 | 74.0 | 61.4 | 85.0 | 34.4 x 13.1 x 21. | 0.00 | 228 |
| GC124-4 | 103.0 | 85.5 | 85.0 | 34.4 x 16.75 x 21.5 | 0.00 | 287 |
| GC124-5 | 132.0 | 110.0 | 85.0 | 34.4 x 20.4 x 21.5 | 0.00 | 350 |
